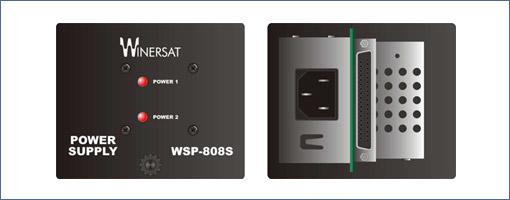

WSP-808S
WSP-808S
General
AC Input
90-260VAC (50-60Hz)
DC Output
5VDC & 12VDC
Output Current
1Ampere (5VDC)
1.5Ampere (12VDC)
Protection
Short Circuit & Overload
Ripple
80mVp-p (DC: 5V/AC:115-220V)
80mVp-p (DC: 12V/AC115-220V)
Real Size of the unit
106 (W) x 190 (D) x 89 (H) mm
Measurement
278 (W) x 185(D) x 142(H) mm
Packing
1 Set / Inner Box, Gross weight: 0.9Kg
12 Sets / Carton / 11.8Kgs/ 580 (W) x 580 (D) x 316 (H) mm
