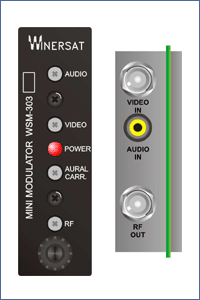

WSM-303
SPECIFICATION
VIDEO
AUDIO
GENERAL
CONNECTORS
SPECIFICATION
Output Channels
NTSC : 55MHz ~ 860MHz
PAL-B: 45MHz ~ 860MHz
PAL-D: 45MHz ~ 860MHz
Output Level
45dBmV
Output Level Range
12dB Continuously Adjustable
A/V Power Ratio
-9 ~ -20dB Continuously Adjustable
Aural Carrier Offset
NTSC : 4.5MHz
PAL-B: 5.5MHz
PAL-D: 6.5MHz
Aural Carrier Stability
± 1KHz
Broadband Noise
-95dBc
Spurious Output
-62dBc
C/N (In Band)
62dBc
VIDEO
Minimum Video Input
0.5 Vp-p
(87.5% Modulation)
Frequency Response
± 1dB (50Hz ~ 4.2MHz)
Hum Ratio
60dB
Differential Gain
3%
(87.5% Modulation)
Differential Phase
2 °
(87.5% Modulation)
Group Delay
75nsec
Video S/N
60dB
AUDIO
Input Requirements
200mV (25KHz dev)
Input Impedance
10 K Ω
Frequency Response
± 1dB (50Hz ~ 15KHz)
Distortion
1%
Pre-Emphasis
75 μ sec
GENERAL
Power Consumption
12V@110mA/5V@85mA
Temperature Range
0 ℃ to 50 ℃
Real Size of the unit
25 (W) x 190 (D) x 89 (H) mm
Measurement
276 (W) x 133(D) x 60(H) mm
Packing
1 Set / Inner Box, Gross weight: 0.3Kgs
24 Sets / Carton / 8.2Kgs/ 400 (W) x295 (D) x590 (H) mm
CONNECTORS
Audio In
RCA Phono
Video In
”F” Type
RF Output
”F” Type
