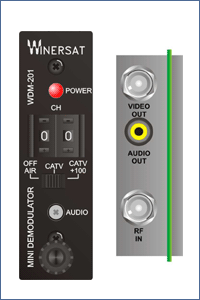

WDM-201



FRONT PANEL

BAND SELECTION OFF AIR / CATV / CATV+100 (ONLY FOR NTSC)
CHANNEL SELECTION CH UP / CH DOWN
AUDIO LEVEL ADJ ADJUST AUDIO LEVEL
POWER LIGHT LED
DIGITS DISPLAY
NTSC : OFF AIR (2 ~ 26)
CATV (2 ~ 99),
CATV+100 (100 ~ 125)
  PAL-B/G : OFF AIR (2 ~ 69), CATV (2 ~ 58)


LATERAL PANEL



VIDEO LEVEL ADJ.

ADJUST VIDEO LEVEL.


REAR PANEL CONNECTORS


RF INPUT F TYPE
VIDEO OUTPUT F TYPE
AUDIO OUTPUT RCA JACK
POWER CONNECTOR 2.54 ψ 3 PIN CONNECTOR


GENERAL

  Real Size of the unit 25 (W) x 190 (D) x 89 (H) mm
Measurement 276 (W) x 133(D) x 60(H) mm
Packing 1 Set / Inner Box, Gross weight: 0.35Kgs
  24 Sets / Carton / 9.4Kgs/ 400 (W) x295 (D) x590 (H) mm


SPECIFICATION


VIDEO OUTPUT NTSC PAL-B/G
OUTPUT LEVEL 1 Vp-p ADJUSTABLE ≧ 1 Vp-p ADJUSTABLE
FREQUENCY RESPONSE 0 ~ 3.6 MHz, ±1.5 dB 0 ~ 4.43 MHz, ±1.5 dB
DIFFERENTIAL GAIN 4 % TYPICAL 4 %
DIFFERENTIAL PHASE 3° TYPICAL
S / N 60 dB 60 dB
AUDIO OUTPUT
OUTPUT LEVEL ≧ 3 Vp-p ≧ 1 Vp-p
DISTORTION 1% 1%
FLATNESS ± 1 dB (50 Hz-15k Hz) ± 1 dB (50 Hz-15k Hz)
RF INPUT
INPUT FREQUENCY RANGE 54 ~ 810 MHz 45 ~ 860 MHz
INPUT LEVEL -5 dBmV ~ 25 dBmV -5 dBmV ~ 25 dBmV
NOISE FIGURE 10 dB 6 dB
