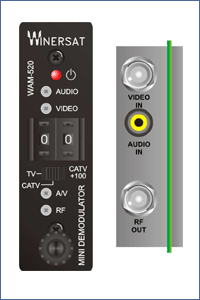

WAM-520




RF
VIDEO
AUDIO
4.5 MHz INPUT
GENERAL


RF

Frequency Range 54 to 860 MHz;
  Standard CATV channels 2 to 125,
  Broadcast TV channels 2 to 69,
Output Level +45 dBmV (minimum-15dB adjustment range.)
Output Impedance 75 Ohms
A / V Ratio Audio carrier level, adjustable from- 18 to-11
dB ( ¡Ó 2dB) Referenced to video carrier level.
Frequency Stability ¡Ó 5KHZ
Intercarrier Frequency 4.5MHz ¡Ó 0.5KHZ
Spurious Outputs -60 dBc typical , measured at-15 dB A/V ratio and
with Modulator output level of +45 dBmV.


VIDEO


Input Level for 87.5% 0.6Vp-p to 1.5 Vp-p. Manual gain adjust with front
Modulation panel control.
Input Impedance 75Ohms
Frequency Response 20 Hz to 4.2 MHz. ¡Ó 1 dB


AUDIO


Input Level for 25 KHz 100 mVrms to 3 vrms. Manual gain adjust
Peak Deviation with front panel control.
Input Impedance Greater than 10 K Ohms , unbalanced.
Pre-emphasis 75 £g Sec., defeatable by internal jumper for
BTSC baseband stereo compatibility.


4.5 MHz INPUT


(AUDIO INPUT Connector ¡V selected by internal jumpers)
Input Impedance 75 Ohms
Input Level +40 dBmV ¡Ó 2 dB for ¡V15 dB A/V ratio.


GENERAL


DC Power Input +12V ¡Ó 5% at 200 mA typical, 230 mA maximum.
+5 V ¡Ó 5% at 320 mA typical, 380 mA maximum.
Operating Temperature 0 ¢J to + 50 ¢J ambient.
Real Size of the unit 25 (W) x 190 (D) x 89 (H) mm
Measurement 276 (W) x 133(D) x 60(H) mm
Packing 1 Set / Inner Box, Gross weight: 0.3Kgs
  24 Sets / Carton / 8.2 Kgs /
400 (W) x295 (D) x590 (H) mm
