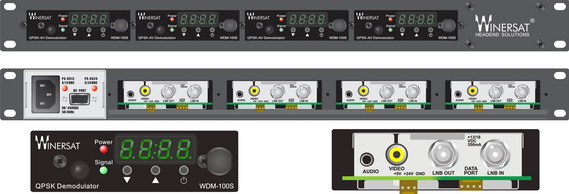

WDM-100S
Features

Specifications
  QPSK DEMODULATOR

Features


User friendly OSD.
All Video MPEG-2 MP/ML decoding.
All Viterbi Puncture Rate with automatic selection (no user set-up needed).
Automatic C or Ku band adaptation.
Both SCPC and MCPC compliant.
DiSEqC 1.2 , 1.1 , 1.0 , Mini A, Mini B all available.
Display aspect ratio 4:3 and 16:9.
DVB reception of any symbol rate from 2-45 MSPS.
Favorite Video / Radio channels programmable.
Immediate last channel memory.
LNB loop out.
LNB power 13 / 18 V DC and 22KHz tone switching capability.
NTSC to PAL / PAL to NTSC convertible.
Recall key on remote.
Software upgrade and data transfer via RS232.
Stereo, single mono and dual mono selection capability.
Teletext available for PAL system. (software driver only).
4000 memory for channels & transponders together.
MTS hot key (Multi Channel Television Sound), select available language.

Specifications


TUNER


Input Frequency : 950 ~ 2150 MHz

Zero I. F.

Loop through output (option)



DEMODULATOR


QPSK demodulation continuously
variable rate from 2 ~ 45 MSPS.


FORWARD ERROR CORRECTION (FEC)


Reed Solomon decoding: RS (204,188).
FEC code rates with automatic selection.


Video


MP / ML MPEG-2 decoding.
Picture resolution CCIR 601, 720 x 480 pixels @30 fps for NTSC.
720 x 576 pixels @25 fps for PAL.

AUDIO
  Decompression MPEG-2 Layers I & II.
  Sampling rates: 32, 44.1, 48 KHz.
AUDIO / VIDEO INTERFACES
  DIP 3.5 EARPHONE JACK
POWER SUPPLY
  DC 5V, 24V
