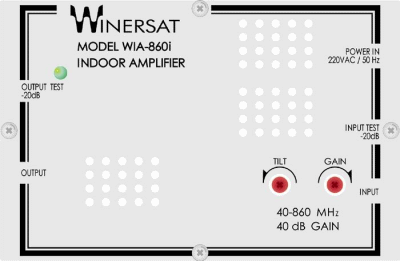

Deluxe Aluminum Housing for Excellent
Head-Sinking
60 dBmv High Output Level -20 dB Input Test Point & Output Test Point Tilt Control & Gain Control Continuously Adjustable Built ¡Vin Power Supply For Easy Installation
Specifications
Operation Frequency Range
40~860MHz
Output Level
60 dBmV
Gain
Typical 40 dB
Reverse Gain
Gain Control
0 ~ -20 dB Continuously Adjustable
Tilt Control
0 ~ -20 dB Continuously Adjustable
Gain Flatness
¡Ó2.0 dB
Return Insertion Loss
Input Return Loss
Output Return Loss
Noise Figure
4.5dB
Input & Output Impedance
75 £[
Input & Output Test Point
-20dB
Connectors
Input, Output & Input, Output
Test Point (All F-Type)
Deluxe Aluminum Housing for Excellent
Head-Sinking
