WDM-100T
Features

Specifications

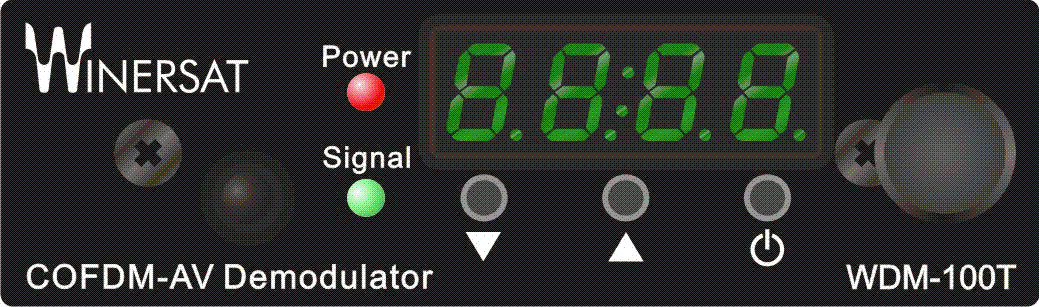

  COFDM A/V Demodulator

Features


Meet DVB-T broadcasting
Fast Auto-programming and User-friendly installation
User friendly OSD
Support PIG(Picture In Graphic)
The Transparency of the foreground OSD to background video
8 Favorite channel groups
Display aspect ratio 4:3
Software upgrade via RS232
Stereo, single mono and dual mono selection capability
MTS hot key (Multi Channel Television Sound), select available language
15 phone book can be inputted
Automatic VHF or UHF band adaptation
Powerful channel control by Move, Delete, Lock, Skip and Favorites
Support Parental lock
2 OSD languages: English and Chinese
Mode with NTSC
Sleep Timers Programmable
Screen Freeze
Recall key on remote

Specifications


TUNER


‧ Input Frequency:VHF 146~242MHz / UHF 466~858MHz
‧ Input Level:-93~-10dBm (Code rate=1/2,FET=2K,GI=1/32)
‧ Demodulation:OFDM FFT 2K / 8K
‧ Constellations:QPSK and 16 / 64QAM
‧ Guard Interval:1/4 ,1/8,1/16,1/32
‧ Bandwidth:6 MHz
‧ Connector:F Female Type
‧

Code rates:1/2,2/3,3/4,5/6,7/8

‧

Compliant with ETSI 300 744 DVB-T



DEMODULATOR


‧ Transport stream:ISO/IEC 13818-1 MPEG-2 (SD) Compliance
‧ Input data rate:60Mb/s Max
‧ Support PIDs :32 User Programmable


Video


‧ Video decoding:ISO/IEC 13818-2 MPEG-2 Video (MP@ML…SP@ML), ISO/IEC 11172-2 MPEG-1 Video Compliance
‧ Picture resolution:NTSC-30 frame@720*480 / PAL-25 frame@720*576
‧ Picture format:4 : 3 / 16 : 9 , Letterbox and Pan / Scan

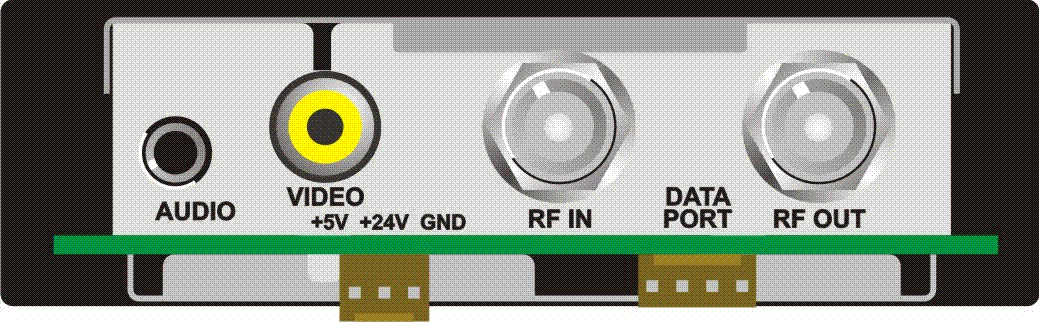

DATA PORT
  ‧ Connector:4-pin WAFER
  ‧ Data rate:115200 baud rate
AUDIO
  ‧ Decompression:ISO/IEC 13818-3 MPEG2 layer 1 and 2 audio data, ISO/IEC 11172-3 MPEG-1 Audio Compliance
  ‧ Audio Mode:Stereo Channel / Dual Mono-L / Dual Mono-R
POWER SUPPLY
  ‧ DC 5V, 24V90 ~ 260 V AC, 50 / 60 Hz ; DC 5V/ 24V
Power Consumption: 5~6 Watts Max.
