WAM-520 | WAP-620 Plus

WAP-620 PLUS
Features

Specifications

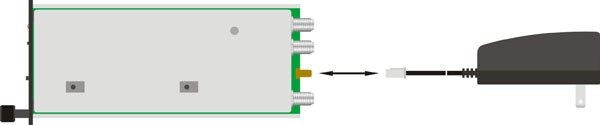

Single Unit w/ PS
1U set in 19” Rack w/ PS

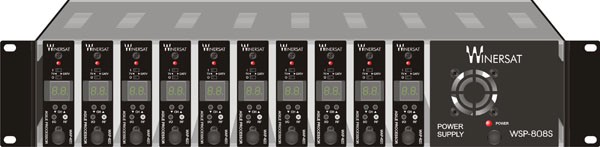

2U set in 19” Rack w/ PS

Pre-installation at factory available
Features


Easy slide-in / pull-out mounting design to make installation easy and space efficient
RF single channel re-built with professional filters and amplifier
47MHz to 862MHz complete RF channels agile for Input and Output
CPU & PLL controls
IF Conversion with stability
Model WAP-620 Plus for digital signals
Model WAP-620 for analog signals
LED channel display

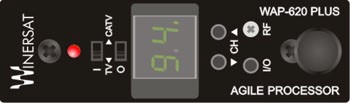

Front panel controls
Power Supply & Rack same as WAM-520 uses
Specifications


RF Input

‧ Frequency Range 48MHz to 860MHz
‧ Input Level 40dBuv ~ 90dBuv
‧ Input Impedance 75 Ohms
‧ Loop-Through Gain ±3.5dB
‧

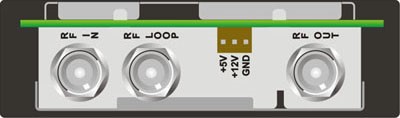

Connector

 F Type Female

RF output

‧ Frequency Range 48MHz to 860MHz
‧ Output Level ≧100 dBuv (Digital)
  ≧105 dBuv (Analog)
‧ Output Impedance 75 Ohms
‧

Level Range

 ≧15dB Continuously Adjustable
‧ Frequency Stability ± 10KHZ
‧ MER Ratio ≦4 (Digital)
‧ SNR Ratio ≦3 (Digital)
‧ Spurious Outputs ≧55 dB
‧ Phase Noise 1k ≧ 70 dBc/HZ (Digital)
    10k ≧ 80 dBc/HZ (Digital)
    100k ≧ 90 dBc/HZ (Digital)
‧ Connector F Type Female

General

‧ DC Power Input 5/12 VDC, 5V/500mA,12V/230mA
‧ Operating Temp 0℃ to + 50 ℃
‧ Dimensions 1”W * 3.5”h * 7.5” d (2.5cm)W * (8.9cm) H * (19.1 cm )*D
‧ Weight 0.3 Kg


Packing per set

‧ One complete set for 4 modules installed with 1U power supply & rack
  One inner box for one complete set
  5 complete sets (or 5 inner boxes), or 20 modules per carton
  One carton: 16 Kg/ 3.2 Cuft

‧ One complete set for 10 modules installed with 2U power supply & rack
  One carton for one complete set
  One carton: 8 Kg / 1.2 Cuft
