WCA-30 / 50 / 5086 / WIA-860 WCA-4086RA

WCA-30 / 50 / 5086 / WIA-860
Features
Specifications
Optional Models

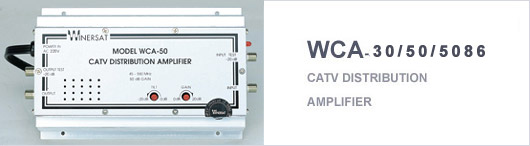

Features-WCA-30 / 50 / 5086


Push-Pull Hybrid IC for Excellent Flatness
Deluxe Aluminum Housing for Excellent Heat- Sinking
60 dBmV High Output Level
-20 dB Input Test Point & Output Test Point
Tilt Control & Gain Control Continuously Adjustable
Built –in Power Supply For Easy Installation

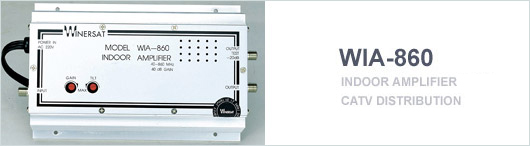

  Features-WIA-860
  Deluxe Aluminum Housing For Excellent Heat-Sinking
60 dBmV High Output Level
-20 dB Output Test Point
Tilt Control & Gain Control Continuously Adjustable
Built-in Power Supply for Easy Installation
Specifications



WCA-30

WCA-50

WCA-5086

WIA-860

Operation Frequency Range

45~550MHz

45~550MHz

45~860MHz

40~860MHz

Output Level

60 dBmV

60 dBmV

60 dBmV

60 dBmV

RF Amplification Device

Push – Pull Hybrid Device

Transister

Gain

30 dB

48 dB

50 dB

40 dB

Gain Control

0 ~ -20 dB Continuously Adjustable

Tilt Control

0 ~ -20 dB Continuously Adjustable

Gain Flatness

±1 dB

±1dB ±1.5 dB

(40~500MHz)±1.5dB (500~860MHz)±3dB

Noise Figure

7dB , Typical

7dB , Typical

7dB,Typical

4.5 dB

Input Return Loss

16 dB

≧ 15dB

≧11dB



Output Return Loss   ≧ 12.5dB ≧11dB

Input & Output Impedance

75 Ω

75 Ω

75 Ω

75 Ω

Input & Output Test Point

-20dB

-20dB

-20dB

-20dB(No Input)

Connectors

ALL F - Type

Power Supply

100V~120V AC or 190V~230V AC

Power Consumption

20W

20W

20W

8W

Operating Temperature

-10~+60 ℃

-10~+60 ℃

-10~+60 ℃

-10~+60 ℃

AC Fuse (Internal)

1Amp

1Amp

1Amp

0.25Amp

Packing (Per Carton)

10Sets/ Carton , 22 Kgs /1.6cuft

Optional Models


WCA-30R/50R
Reverse Path:
Operation Frequency Range : 5~30MHz
Gain : 0 ~12 dB Adjustable

General
Real Size of the unit 200 (W) x 130 (D) x 53 (H) mm
Measurement 258 (W) x 167 (D) x 97 (H) mm,
Packing 1 Set / Inner Box, Gross weight: 2.2Kgs
10 Sets / Carton / 23Kgs/ 498 (W) x 360 (D) x 280 (H) mm
