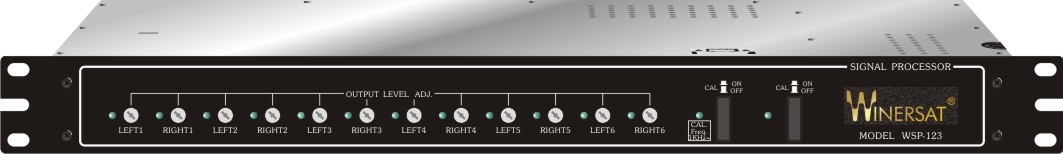

WSP-123


Features


Variance of Input Level:±18dB; Tolerance of Output level:± 0.5dB.
Gain Comprocessor from Peak to 0dB/0V:8 Seconds.
Output Level:0~2 Vp-p (1 Vp-p Preset in Factory), 1 KHz.
Audio Connection Possibility:6 Stereo Channels or 12 Mono Channels.
Automatic Audio Equalization without Tuning.
Professional Calibration Signal:1KHz.


Specifications
CMRR 40DdB (Min.) Front Panel
Input Impedance 100KΩ Unbalance ALC(AGC) Indicator
Output Impedance 600Ω Unbalance CAL Indicator
Output Level, Peak 10dB, Adjustable on Front Panel Output Level Adjustable knob with indicator x12

Distortion

0.25% Max

ALC(AGC) Switch button

S/N Ratio

80dB

ALC ON

:Control the Output Level as Preset
Frequency Response 50Hz~20KHz, ±0.5dB ALC OFF :Release the Output Level Control
Input Power 110V AC/60Hz or 175~230V AC/50Hz CAL Switch button
Dimension 9”(L)x9-3/4”(W)x1-3/4”(H) CAL ON :With 1 KHz Output
Weight 8 Lbs CAL OFF :Without 1 KHz Output
Packing 5 Sets/Carton/16Kgs/3.12 cuft
Back Panel:Audio channel (6 stereo/12 mono ) inputs /outputs
