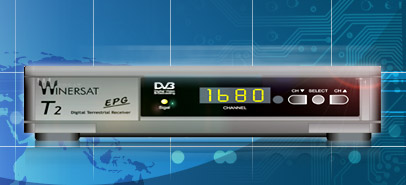

DIGITAL TERRESTRIAL RECEIVER


Features


DVB-T Full Compliance
Chinese EPG
Easy Navigate OSD Menu
User Friendly Channel Edit (Move, Delete, Lock, Skip, Favorite)
8 Favorite Channel Groups For Individual Family Member
Menu & Parental Lock Support
Automatic And Manual Channel Scanning
All/Free/Pay Channel Scan Support
6/7/8mhz Bandwidth Selectable *
Aspect Ratio 4:3/16:9 Support
PIG (Picture In Graphic) Support
Transparency Adjustable
On Screen Display Phone Book
Stereo/Mono Audio Selectable
YCbCr (YUV), S-Video & Composite Video Support
S/PDIF For Digital Audio Output
Multi-Lingual Audio Channel Selectable *
Freeze Current On Screen Fram
Sleep Timer
Recall Function For Jumping Between Two Channels
Software Upgrade Via RS232
Specifications

Tuner

Connector Type F Type (Female)
Input Frequency VHF 174~230MHz / UHF 470~862MHz
Signal -78~-20dBm
Compliance ETSI 300 744 DVB-T
Demodulation Type OFDM
FFT size 2K and 8K
Modulation Constellation QPSK and QAM16 , 64
Guard Interval 1/4, 1/8, 1/16, 1/32
FEC Decoding 1/2, 2/3, 3/4, 5/6 , 7/8
Reed-Solomon 204 , 188
Channel Bandwidth 6 / 7 / 8 MHz

De-Multiplexing

Transport Steam ISO/IEC 13818-1 MPEG-2 Compliance
Input Date Rate 60Mb/s Max
Support PIDs 32 User Programmable

Video Decoding and OSD

Video Decompression ISO/IEC 13818-2 MPEG-2 Video (MP@MLˇKSP@ML)
ISO/IEC 11172-2 MPEG-1 Video Compliance
Video buffer 32Mbits of SDRAM is provided
Data rate 1 Video stream Up to 15Mbits/s
Video Resolution NTSC-30 frame@720*480 / PAL-25 frame@720*576
Video format 4 : 3 / 16 : 9 , Letterbox and Pan / Scan
Chrominance format 4 : 2 : 0 (conversion to 4 : 2 : 2 in MVS Unit)

Audio Decoding

Audio Decompression ISO/IEC 13818-3 MPEG2 layer 1 and 2 audio data
  ISO/IEC 11172-3 MPEG-1 Audio Compliance
Audio outputs format Stereo Channel / Dual Mono-L / Dual Mono-R
Sampling Frequency 16 , 22.05 , 24 , 32 , 44.1 and 48 KHz
Support Linear PCM Sample rates up to 96 KHz
Digital Audio IEC 60958 / encoded with AC-3

Data port

Connector 9-pin D-sub Female
Date rate 115200 baud rate

Front Panel

Channel display 4-Digit LED display
Switch keys Power-on/stand by , Channel up , Channel down

Rear Panel

Connectors ANT in (F Female) *1 / loop through (F Female) *1
  Data 9-pin D-sub female ( RS232 ) *1
  S/PDIF Digital Audio Output (RCA) *1
  Video Signal (RCA) *1
  Audio L / R (RCA) *1
  YCbCr Digital Video Out (RCA) *3
  S-Video Video Output (4-pin Mini-Din) *1
Power Power On / Off Switch

Power Supply

Type SMPS
Input voltage 90 ~ 260 VAC @ 50Hz or 60Hz
Power consumption 7 Watts Max

Packing Detail

Unit Size 200(L) x 120(W) x 51(H) mm
Measurement 380(L) x 365(W) x 375(H) mm
Packing 8 PCS / Carton / 9.5 kgs (NW) / 10.5 kgs (GW)
