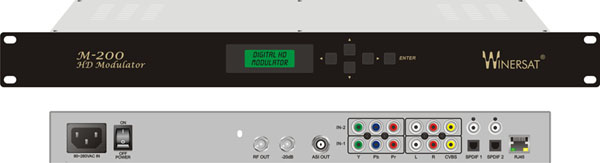

M-200
Features

Specifications
  HD MODULATOR 60 frames


OVERVIEW


HD 720p/1080i video quality ready and dual input
With advanced 60 fps (frames per second) design to ensure clear fast-moving pictures
Ready to consolidate or combine existing or new RF coaxial cabling
Standard digital QAM cable compatible with any QAM tuner ready HDTV set/ HD box

FEATURES


Support main video resolutions 720p, 1080i, 480p/i…..etc., MPEG-2 HD
Dual video/encoder input with single RF output to save using RF channels
60 fps (frames per second) to assure crystal clear video quality on fast-moving pictures
60 fps & 30 fps for selections. Either 30fps or 60fps can be selected for each video
38 Mbps max video encoding with low latency
Closed Caption available thru video composite input
Digital AC-3 Dolby pass-thru and PCM audio available
Icon display for content theft prevention.
Front plate LCD to read channel status
Output channel well-inserted to any blank channel
256QAM & 64QAM both available
Annex A/B available
Friendly configuration & management control
-Thru the front plate key buttons or remote web page
-Ethernet RJ45 port for remote configuration and management
Simple installation, standalone unit or with additional ears for 19 inch rack mount
Deluxe aluminum front plate, chassis and ears (optional), also excellent for heat-sinking

SPECIFICATIONS


Video Input


Component Video (Y, Pr, Pb) RCA connectors, 75 Ohm
  1080i, 720p, 480p, 480i
  720p@60fps / 1080i@30fps
Closed Caption EIA/CEA-608 captions accepted over
  composite video input


Input


SPDIF Digital Audio Physical Connections
    TOSLINK optical
    RCA 75 Ohms
  AC-3 Pass-through


Video Encoder


Encoder Video Profile MPEG2 HD Profile 2: ISO13818-2
    MP@HL (1920x1080 or 1280x720)
Traffic Shaping Variable Bit Rate
Video Transport Bit Rate 38.78 Mbps
Video Encoding Data Rates Variable, 7 Mbs - 38 Mbs
Color Profile 4:2:0
Video, Audio PID Programmable
Program Information Programmable


Audio Encoder


Encoder Audio Profile ATSC A/52
Digital Pass-through Dolby Digitalc (AC-3) 1-5.1 channel,
    Dolbyc E, Linear PCM

Modulator/Upconverter

Modulation Types QAM 256, QAM 64 (ITU-T J83 Annex B)
    Interleaving modes: For Annex B
Cable Standard HRC, IRC or STD
Frequency Range 45 - 860 MHz (channels 2-135)
Output Power Gain +30 dBmV typical
Output Level Adjustment range 15 dBm by 1dBmV steps
MER 36dB typical
SNR
38dB typical

Control/Setup

Network interface 10/100M Ethernet via RJ45 connection

General

Power Supply 90-260VAC, 50/60Hz, Switching Power Supply
Packing 19”(L)*8.1”(D)*1.75”(H)
    1 set / Inner Box
    5 Sets / Carton / 12 Kgs / 2.75 cuft
