C2 super
C2x
Features

Specifications
  CABLE DECODER CONAX

Features


Digital Cable Receiver
Support Conax CAS
USB 2.0 Host Support (PVR,MP3 Player &Picture VIewer)
Recording & Playback with External USB 2.0 Devices
Time Shift with External USB 2.0 Devices
Recording and Time Shift Simultaneously
Support EPG (Electronic Program Guide),Event Recording by EPG
MPEG-4 SD & Fully DVB Compliant
On-Screen Display with 16 bit Color Full Resolution
Favorite Service Groups
Powerful Service Control by Favorites, Lock, Skip, Move, Rename and Delete
Service Sorting by LCN, Service ID, Network ID and Service Name
Multi-Language Supported (OSD & Menu)
Teletext ,Subtitle Support
Maximum 1000 Services Programmable
Multi-picture Display
Parental Lock
Software & Services Database Transfer via USB

Specifications


Tuner & Channel


‧ Input Connector F-Type,IEC 169-24,Female
‧ Loop through out IEC 169-1,Male
‧ Frequency Range 50MHz -862MHz
‧ Demodulation QAM
‧ Input Symbol Rate 1-7 Msp/s
‧ Bandwidth 7,8 MHz
‧ Modulation Format 16,32, 64,128, 256QAM

Transport Stream AIV Decoding


‧ Transport Stream MPEG-2 1SO/IEC 13818 MPEG-41SO/IEC
‧ Profile Level MPEG-4 SP and ASP
‧ Input Rate Max. 20Mbit/s
‧ VIdeo Resolution 720x576,720x480
‧ VIdeo Format 4:3 , 16:9
‧ Audio Decoding MPEG-1, MPEG-2(Layer I&II)
‧ Audio Mode Stereo/Joint, Stereo/Mono
‧ Sampling Rate 16, 22.05,24,32,44.1K,48KHz

Main System


‧ Memory FLASH-ROM 4MBytes
  DDR3 64MBytes

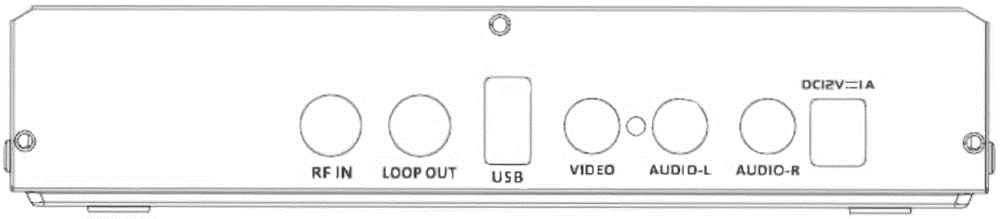

Audio / VIdeo & Data IN/OUT


‧ RCA CVBS Video, Audio L, R Output
‧ USB USB 2.0 Host Support

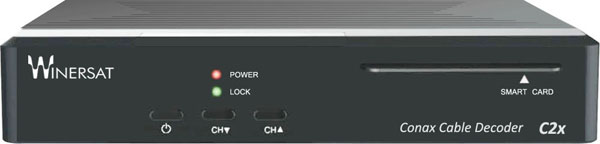

Front Panel


‧ Buttons Standby, CH up, CH down
‧ LED Indicators Standby: RED, Working: GREEN
‧ Slot 1 Smart Card Slot

Supported Multimedia Format


‧ Video mpg,mpeg,ts,trp,tp,nv,avl,3gp
‧ Audio MP3
‧ Photo JPG,JPEG,JPE,BMP,PNG

Power Supply


‧ Input Voltage DC 12V/1A
‧ Type SMPS
